8.7. Shares module

Deployment — Kubernetes & UCS appliance

The Shares management module appears in both deployments. However, administrators mostly use it in the context of the UCS appliance with its share management capabilities.

Nubus offers the Shares management module to manage file shares on UCS appliances through Samba and NFS.

You find the Shares management module in the Domain category in the Management UI. To add a share, click Add in the Shares management module. Fig. 8.6 shows the General tab with the General settings for a file share. The Shares management module has the following tabs:

• General tab - Shares management

• NFS tab - Shares management

• Samba tab - Shares management

• Options tab - Shares management

This section provides a reference for the fields used in the Shares management module.

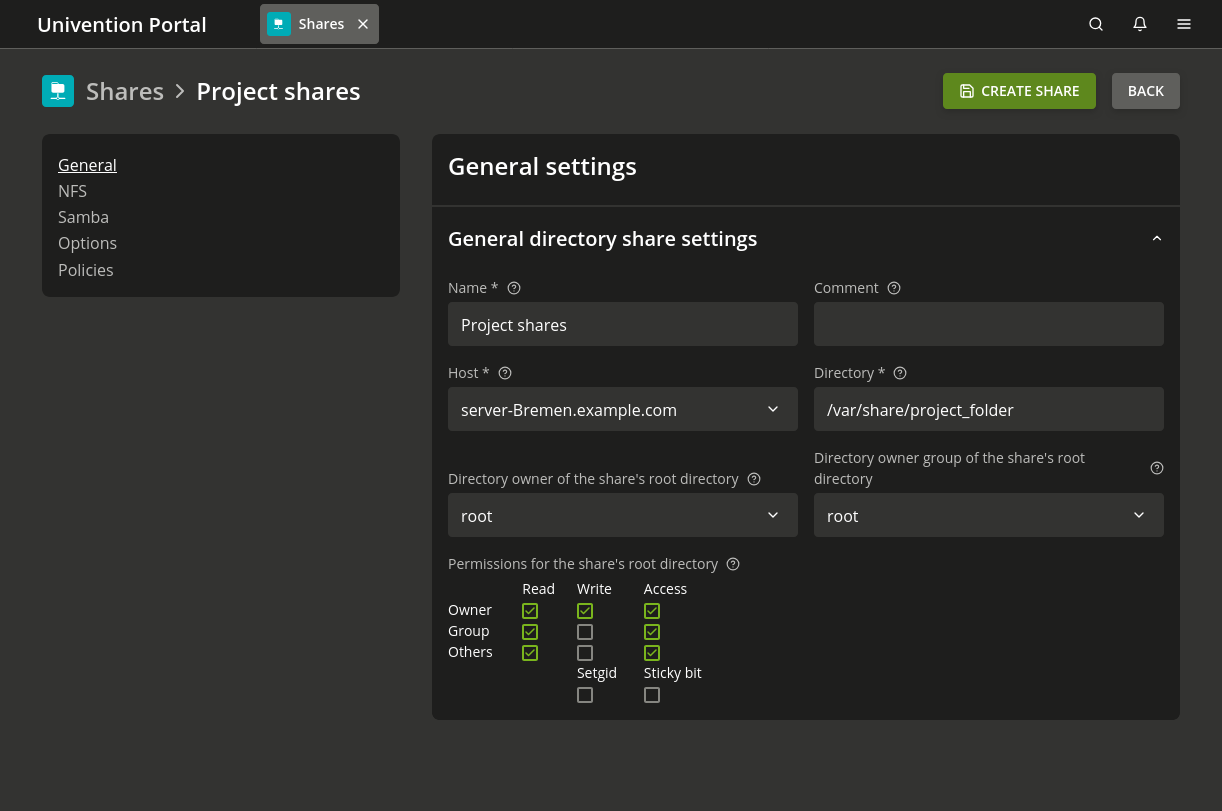

Fig. 8.6 General settings for file shares in the Shares management module

Packaged service — only available for UCS appliance

A packaged service using information from the Shares management module is only available for the UCS appliance. You can manage the information in the Kubernetes deployment, as well. The UCS appliance uses NFS and Samba for providing file shares.

When you add, edit, or delete a share, Nubus directly changes the /etc/exports configuration file for NFS and the Samba configuration, depending on the resulting effects of the change.

8.7.1. General tab - Shares management

This section provides a reference for the General tab in the Shares management module.

Name

The name of the share. It can include letters, digits, periods, or blank spaces. It must start and end with a letter or a digit.

Comment

A free comment for this share, for example describing its purpose. The file browser in Microsoft Windows shows the comment of the share.

Host

The UCS system where the share locates. You can select any of the UCS Directory Nodes and Managed Nodes listed in the directory service for the domain and that are part of the DNS forward lookup zone.

Directory

The absolute path of the directory on the host that you want to use for the share. Don’t use question marks or special characters in the absolute path, such as spaces.

If the directory doesn’t exist, the UCS appliance system selected as host automatically creates it. Nubus doesn’t allow creating shares or move files to the following directories:

• /proc

• /tmp

• /root

• /dev

• /sys

Packaged service — only available for UCS appliance

If the listener/shares/rename UCR variable has the value yes, the UCS appliance moves the content of the existing directory if you modify the absolute path for the share directory.

Directory owner of the share’s root

The user to whom the root directory of the share belongs, see Access rights to data in shares.

Directory owner group of the share’s root

The user group to whom the root directory of the share belongs, see Access rights to data in shares.

Permissions for the share’s root

The read, write, and access permissions for the share’s root directory, see Access rights to data in shares.

See also

Role concept

in Univention Corporate Server Architecture [5] for information about Directory Nodes and Managed Node as part of the role concept in the UCS appliance.

8.7.2. NFS tab - Shares management

The NFS tab in the Share management module has the following fields.

NFS write access

If activated, grants write access to the share. Otherwise, the share is in read-only mode.

Subtree checking

If activated, the NFS server ensures that an accessed file in the share is in fact in that subtree. The NFS server runs the verification upon every access to the file and passes the path information to client for the verification.

If activated, the function may cause problems in situations, where a file rename happens while a client has opened the file.

Modify user ID for root user (root squashing)

NFS identifies a user through the user ID. To prevent a local root user from working with root permissions on other shares, you can redirect root access. If this option is active, the NFS server runs access operations as user nobody.

Important

The local group staff owns privileges that come close to root permissions. By default, the user group staff has no members and is empty. However, the redirection mechanism doesn’t consider this group. Keep this behavior in mind when you add users to the user group staff.

NFS synchronization

Defines the synchronization mode for the share.

synchronous

Use the mode synchronous to write data directly to the underlying storage device.

asynchronous

Use the mode asynchronous for the opposite behavior to not write data directly to the underlying storage device. The mode can improve performance, but also involves the risk of data loss if the server shuts down incorrectly.

Only allow access for these hosts, IP addresses or networks

By default, all hosts have permission to access a share. Add hostnames or IP addresses to grant access permission to those hosts. For example, you can restrict access to a share containing mail data to the mail server of the domain.

Custom NFS share settings

Apart from the properties before, Custom NFS share settings allows defining further arbitrary NFS settings for the share. Nubus doesn’t validate for duplicate entries. You find a list of available options in the man pages through man 5 exports, or online at exports(5).

Caution

The definition of extended NFS settings is only necessary in special use cases. You need to thoroughly validate the options, because they may have security-relevant effects.

8.7.3. Samba tab - Shares management

The Samba tab in the Share management module has the following sections:

• Section Samba - Shares management

• Section Samba permissions - Shares management

• Section Samba extended permissions - Shares management

• Section Samba options - Shares management

• Section Samba custom settings - Shares management

8.7.3.1. Section Samba - Shares management

Windows name

The NetBIOS name of the share. The share appears with this name in the network environment on Microsoft Windows computers. When you add a directory share, the Share management module adopts the name from the Name field on the General tab as default value.

Show share in Windows network environment

Specifies whether the share shows up in the network environment on Microsoft Windows clients.

Allow anonymous read-only access with a guest user

Permits access to the share without a password. Every access happens with the user rights of the common guest user nobody.

Export share as MSDFS root

For description of this option, see Support for MSDFS.

Hide unreadable files/directories

If activated, the share hides all files that aren’t readable for the user, because of their file permissions.

8.7.3.2. Section Samba permissions - Shares management

Users with write access may modify permissions

If activated, all users with write access to a file can change its permissions, access control list (ACL) entries, and ownership permissions. For more information, see Access rights to data in shares.

Force user

The share uses this username, its permission and primary user group to perform all the file operations of the accessing user. The share uses the username only after the user established a connection to the Samba share with their real username and password.

The use case for a forced user is for using data in a shared way.

Important

However, improper use can raise security problems.

Force group

The share uses this user group as primary user group for all users connecting to it. Thereby, the permissions of this group automatically apply as the group permissions of all these users. A user group registered here has a higher priority than a user group assigned as the primary user group of a user through the Force user field.

If you prefix the user group name with a +, Samba assigns the user group solely as primary user group to users who are already member of this group. All other users retain their primary user group.

Valid users or groups

Names of users or user groups with authorization to access the Samba share. Samba denies access to the share for all other users. If the field is empty, all users may access the share, if necessary after providing their password. This option is for securing access to a share at file server level beyond the file permissions.

Separate the user or user group entries with spaces. Use the special characters @, +, and & in connection with the user group name to assign certain permissions to the users in the user group for accessing the Samba share.

@

Samba interprets a name beginning with the character @ as a NIS net-group. If Samba doesn’t find a NIS net-group with this name, it considers the name as a Unix group.

+

Samba considers a name beginning with the character + exclusively as a Unix group.

&

Samba considers a name beginning with the character & exclusively as a NIS net-group.

+&

Samba interprets a name beginning with the characters +& as a Unix group first. If Samba doesn’t find a Unix group with this name, it considers the name as a NIS net-group.

&+

The characters &+ at the beginning of the name correspond to the behavior for the character @.

Invalid users or groups

The users or groups listed here can’t access the Samba share. The syntax is identical to Valid users or groups. Samba denies access to a user or a user group, if both options Valid users or groups and Invalid users or groups list them.

Restrict read access to these users/groups

Only the users and user groups listed here have read permission for the share.

Allow Samba write access

If activated, users can write to the share if they access it through Samba.

If deactivated, users can still have write access if listed in Restrict write access to these users/groups.

Restrict write access to these users/groups

Only the users and user groups listed here have write permission for the share.

Allowed hosts/networks

Names of computers with authorization to access the Samba share. Samba denies access for all other computers. In addition to computer names, it’s also possible to specify IP or network addresses, for example the network address 192.0.2.0/255.255.255.0.

Denied hosts/networks

The opposite to Allowed hosts/networks. If a computer appears in both lists, Samba permits access to the Samba share for the computer.

Inherit ACLs

If activated, each file created in the share inherits the access control list (ACL) of the directory of the share.

Create files/directories with the owner of the parent directory

If activated, Samba assign the owner of the parent directory to the created file instead of the user who created the file.

Create files/directories with permissions of the parent directory

If activated, Samba automatically assigns the Unix permissions of the parent directory to each file or directory that users create in the share.

If users create a file on a Samba server through their Microsoft Windows client, Samba assigns file permission in the following order:

1. Samba translates only the DOS file permissions into Unix file permissions.

2. Samba filters the file permissions through the File mode. It only preserves Unix permissions marked in File mode. Samba removes permissions not marked in File mode. Therefore, to preserve permissions, you need to set them as Unix permissions and in File mode.

3. Samba adds the permissions under Force file mode. As a result, the file has all the permissions that Samba set after step 2 or under Force file mode. This means, Samba sets permissions marked under Force file mode in any case.

Accordingly, Samba initially assigns the same permissions to a newly created directory that are set both as Unix permissions and in Directory mode at the same time. After that, Samba assigns the permissions marked under Force directory mode.

8.7.3.3. Section Samba extended permissions - Shares management

File mode

Defines the permissions that Samba assigns when users create a file in the share through Microsoft Windows.

Directory mode

Defines the permissions that Samba assigns when users create a directory in the share through Microsoft Windows.

Force file mode

Defines the permissions that Samba assigns in any case when users create a file. For this setting it doesn’t matter if users work under Microsoft Windows or not.

Force directory mode

Defines the permissions that Samba assigns in any case when users create a directory. For this setting it doesn’t matter if users work under Microsoft Windows or not.

8.7.3.4. Section Samba options - Shares management

VFS Objects

Samba uses Virtual File System (VFS) modules to perform actions before users access a share’s file system.

Examples

• A virus scanner that stores every infected file accessed in the share in quarantine.

• A server-side implementation of a recycle bin for deleting files.

Hidden files

Microsoft Windows can access files and directories, but they can also not be visible. Such files and directories have the DOS attribute hidden assigned.

Ensure the following constraints for this setting:

• The setting interprets names of files and directories case-sensitive.

• Separate each entry by a slash (/). You can’t use the slash in path names.

• Names may include spaces and the wildcards * and ?.

Samba hides all files and directories in the share that match the name. For example, /.*/test/ hides all files and directories with names beginning with a period ., or with names test.

Note

Entries in the Hidden files field affect Samba’s performance because Samba validates all files and directories in a share according to the active filters each time it shows files.

Postexec script

A script or command that the server with the share runs after the connection to the share closed.

Preexec script

A script or command that the server with the share runs every time a client establishes a connection to the share.

8.7.3.5. Section Samba custom settings - Shares management

Option name in smb.conf and its value

You can define further arbitrary Samba settings for a share apart from the properties that you can configure as standard features in a Samba share. You find a list of available options in the man page man 5 smb.conf or online at smb.conf(5) <https://manpages.debian.org/bookworm/samba-common-bin/smb.conf.5.en.html>. The Key field contains the option and the Value contains the value for the option. Nubus doesn’t validate for duplicate entries.

Caution

You only need to define extended Samba settings in special use cases. Validate the options thoroughly, because they may have security-relevant effects.

8.7.4. Options tab - Shares management

Export for Samba clients

Defines if the Nubus exports the share for Samba clients, such as Microsoft Windows.

Export for NFS clients

Defines if the Nubus exports the share for NFS clients.
